Product Information
A zinc plated, yellow passivated, torque controlled sleeve anchor. Suitable for use in non-cracked concrete, dense concrete blocks, solid bricks and some natural stone.
Features
Through fixing
light to medium duty loads
Torque controlled expansion
Collapse feature to allow a positive clamping force

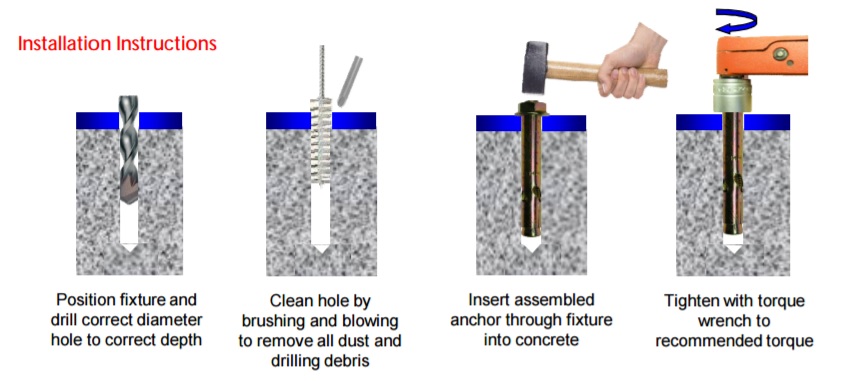

Supplied pre-assembled for rapid installation
Part Number | Outside/ Drill Dia. | Anchor Length | Thread Dia. | Maximum Fisture Thickness | Fixture Clearance Hole | Embedment Depth | Minimum Hole Depth | Structure Thickness | Installation Torque |
SLN08040 | 8mm | 40mm | 6mm | 5mm | 9mm | 30mm | 35mm | 100mm | 10Nm |
SLN08065 | 8mm | 65mm | 6mm | 30mm | 9mm | 35mm | 40mm | 100mm | 10Nm |
SLN08085 | 8mm | 80mm | 6mm | 45mm | 9mm | 35mm | 40mm | 100mm | 10Nm |
SLN10050 | 10mm | 45mm | 8mm | 5mm | 12mm | 40mm | 45mm | 100mm | 20Nm |
SLN10075 | 10mm | 70mm | 8mm | 30mm | 12mm | 40mm | 45mm | 100mm | 20Nm |
SLN10100 | 10mm | 95mm | 8mm | 55mm | 12mm | 40mm | 45mm | 100mm | 20Nm |
SLN10125 | 10mm | 120mm | 8mm | 80mm | 12mm | 40mm | 45mm | 100mm | 20Nm |
SLN12060 | 12mm | 60mm | 10mm | 15mm | 14mm | 45mm | 50mm | 100mm | 35Nm |
SLN12075 | 12mm | 70mm | 10mm | 20mm | 14mm | 50mm | 60mm | 100mm | 35Nm |
SLN12100 | 12mm | 95mm | 10mm | 50mm | 14mm | 50mm | 60mm | 100mm | 35Nm |
SLN12125 | 12mm | 120mm | 10mm | 65mm | 14mm | 50mm | 60mm | 100mm | 35Nm |
SLN16065 | 16mm | 65mm | 12mm | 10mm | 18mm | 50mm | 60mm | 100mm | 45Nm |
Thread size | Length | Hole Dia. | Maximum Fixture Thickness | Fixture Hole Clearance | Thread Length | Embedment Depth | Minimum Hole Depth | Structure Thickness | Tightening Torque Nm |
SLN16110 | 16mm | 105mm | 12mm | 10mm | 18mm | 55mm | 65mm | 100mm | 45Nm |
SLN16150 | 16mm | 150mm | 12mm | 90mm | 18mm | 55mm | 65mm | 100mm | 45Nm |
SLN20080 | 20mm | 75mm | 16mm | 15mm | 22mm | 60mm | 70mm | 100mm | 70Nm |
SLN20110 | 20mm | 100mm | 16mm | 45mm | 22mm | 60mm | 70mm | 100mm | 70Nm |
SLN20150 | 20mm | 140mm | 16mm | 85mm | 22mm | 60mm | 70mm | 100mm | 70Nm |
