The Loose Bolt Shield Anchor is a three way expansion shield suitable for use in brick and concrete. The thick walls of the expanders
give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brick work.
Product Information
The shield anchor is an all steel, internally threaded expansion anchor for general purpose applications, suitable for fixing into concrete, solid brick, dense blockwork, and some natural stone.
Features
All Steel anchor
High degree of expansion
Captive Cone Nut
High Tensile Bolt

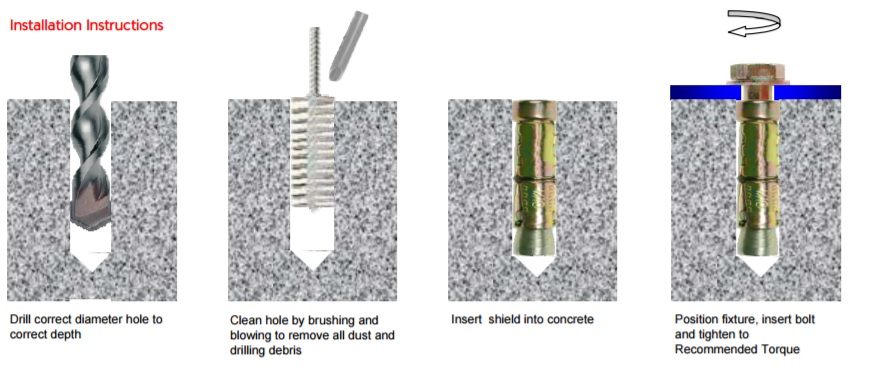

Part Number | Thread Dia. | Overall Length | Maximum Fixture Thickness | Drill Hole Dia. | Minimum Hole Depth | Embedment Depth | Fixture Clearance Hole | Minimum Structure Thickness | Rec. Tight Torque |
ALB0610 | 6mm | 55mm | 10mm | 12mm | 50mm | 45mm | 8mm | 80mm | 6Nm |
ALB0625 | 6mm | 70mm | 25mm | 12mm | 50mm | 45mm | 8mm | 80mm | 6Nm |
ALB0640 | 6mm | 85mm | 40mm | 12mm | 50mm | 45mm | 8mm | 80mm | 6Nm |
ALB0810 | 8mm | 60mm | 10mm | 14mm | 55mm | 50mm | 10mm | 100mm | 14Nm |
ALB0825 | 8mm | 75mm | 25mm | 14mm | 55mm | 50mm | 10mm | 100mm | 14Nm |
ALB0840 | 8mm | 90mm | 40mm | 14mm | 55mm | 50mm | 10mm | 100mm | 14Nm |
ALB1010 | 10mm | 70mm | 10mm | 16mm | 65mm | 60mm | 12mm | 120mm | 27Nm |
ALB1025 | 10mm | 85mm | 25mm | 16mm | 65mm | 60mm | 12mm | 120mm | 27Nm |
ALB1050 | 10mm | 110mm | 50mm | 16mm | 65mm | 60mm | 12mm | 120mm | 27Nm |
ALB1075 | 10mm | 135mm | 75mm | 16mm | 65mm | 60mm | 12mm | 120mm | 27Nm |
ALB1210 | 12mm | 85mm | 10mm | 20mm | 85mm | 75mm | 14mm | 160mm | 46Nm |
ALB1225 | 12mm | 100mm | 25mm | 20mm | 85mm | 75mm | 14mm | 160mm | 46Nm |
ALB1240 | 12mm | 115mm | 40mm | 20mm | 85mm | 75mm | 14mm | 160mm | 46Nm |
ALB1260 | 12mm | 135mm | 60mm | 20mm | 85mm | 75mm | 14mm | 160mm | 46Nm |
ALB1615 | 16mm | 135mm | 15mm | 25mm | 120mm | 110mm | 18mm | 200mm | 110Nm |
ALB1630 | 16mm | 150mm | 30mm | 25mm | 120mm | 110mm | 18mm | 200mm | 110Nm |
ALB1660 | 16mm | 180mm | 60mm | 25mm | 120mm | 110mm | 18mm | 200mm | 110Nm |
