The Hook Bolt Shield Anchor is a three way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it
to cater for oversized holes caused by powerful drills in weaker materials such as brick work.
An all steel expanding shield anchor. Carbon steel bright zinc plated & yellow passivated. Suitable for use in concrete, concrete blocks, bricks and some natural stone
The Hook Shield Anchors are suitable for use for static loads only. They cannot be used as lifting points or for use with safety restraint harnesses.

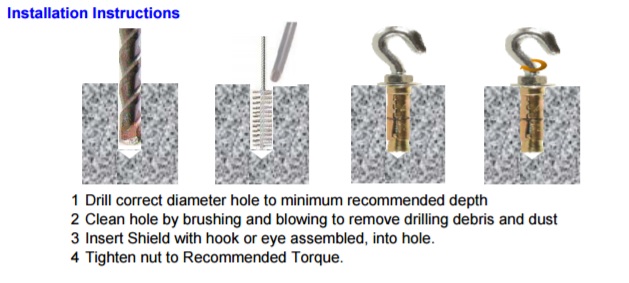

Part Number | Thread Dia. | Drill Hole Dia. | Clearance Hole Dia. | Minimum Hole Depth | Min. Embedment Depth | Rec. Tight Torque | Minimum spacing | Minimum Edge Distance | |
AEBM06 | 6mm | 12mm | 7mm | 50mm | 40mm | 6Nm | 1.4kN | 140mm | 70mm |
AEBM08 | 8mm | 14mm | 9mm | 55mm | 50mm | 14Nm | 2.6kN | 150mm | 75mm |
AEBM10 | 10mm | 16mm | 12mm | 65mm | 60mm | 27Nm | 4.2kN | 180mm | 90mm |
AEBM12 | 12mm | 20mm | 14mm | 85mm | 80mm | 46Nm | 6.1kN | 230mm | 120mm |
