Philidas
Philidas All Metal Self Locking Nuts
Philidas are the leading a leading all metal self locking nut manufacturer in the UK.
Their plant in Pontefract houses coldforging and bar turning facilities enabling small, medium and large
batch production runs supplied through a distributor network to the industrial and automotive markets.
Also onsite they have a fully equipped toolroom using the latest technology with 3D CAD and forging simulation
for the design of all machine tooling.
Philidas produce both their standard range and specials in grades 8, 10 & 12.
Subject to MOQ's brass and aluminium items can also supplied.

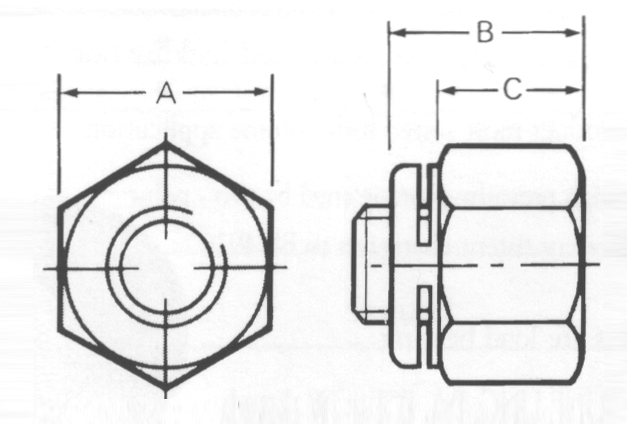

Dimensions for Philidas Industrial self locking nuts
| Diameter |
Order Reference |
A a/f |
B |
C |
| M5 |
5 MCI |
8.0mm |
6.5mm |
4.3mm |
| M6 |
6 MCI |
10.0mm |
7.5mm |
5.0mm |
| M8 |
8 MCI |
13.0mm |
8.5mm |
5.7mm |
| M10 |
10 MCI |
17.0mm |
11.0mm |
8.0mm |
| M12 |
12 MCI |
19.0mm |
13.0mm |
9.5mm |
| M14 |
14 MCI |
22.0mm |
15.0mm |
11.0mm |
| M16 |
16 MCI |
24.0mm |
17.0mm |
12.8mm |
| M18 |
18 MCI |
27.0mm |
20.0mm |
15.5mm |
| M20 |
20 MCI |
30.0mm |
22.0mm |
17.5mm |
| M22 |
22 MCI |
32.0mm |
23.0mm |
18.0mm |
| M24 |
24 MCI |
36.0mm |
25.0mm |
19.5mm |
| M27 |
27 MCI |
41.0mm |
28.0mm |
22.0mm |
| M30 |
30 MCI |
46.0mm |
31.0mm |
24.5mm |
| M33 |
33 MCI |
50.0mm |
33.0mm |
26.2mm |
| M36 |
36 MCI |
55.0mm |
36.0mm |
28.6mm |
| M39 |
39 MCI |
60.0mm |
39.0mm |
31.1mm |
| M42 |
42 MCI |
65.0mm |
42.0mm |
33.5mm |
| M45 |
45 MCI |
70.0mm |
45.0mm |
36.0mm |
| M48 |
48 MCI |
75.0mm |
48.0mm |
38.0mm |
| M52 |
52 MCI |
80.0mm |
52.0mm |
41.5mm |

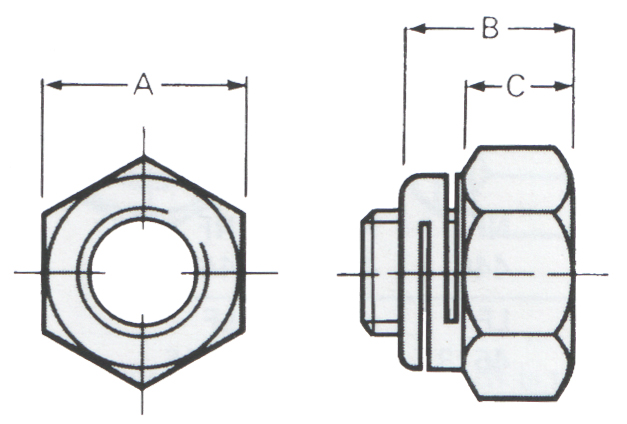

Philidas Turret self locking Nuts
| Diameter |
Order Reference |
A a/f |
B |
C |
| M2.5 |
2.5 MCP |
5.0mm |
4.5mm |
2.4mm |
| M3 |
3 MCP |
5.5mm |
4.75mm |
2.45mm |
| M3.5 |
3.5 MCP |
7.0mm |
5.0mm |
2.5mm |
| M4 |
4 MCP |
7.0mm |
5.6mm |
3.3mm |
| M5 |
5 MCP |
8.0mm |
6.8mm |
3.9mm |
| M6 |
6 MCP |
10.0mm |
8.5mm |
5.0mm |
| M8 |
8 MCP |
13.0mm |
10.5mm |
6.0mm |
| M10 |
10 MCP |
17.0mm |
13.0mm |
7.6mm |
| M12 |
12 MCP |
19.0mm |
15.0mm |
8.5mm |
| M14 |
14 MCP |
22.0mm |
17.0mm |
10.0mm |
| M16 |
16 MCP |
24.0mm |
19.5mm |
12.0mm |
| M18 |
18 MCP |
27.0mm |
20.0mm |
14.0mm |
| M20 |
20 MCP |
30.0mm |
24.0mm |
15.5mm |
| M22 |
22 MCP |
32.0mm |
26.5mm |
17.5mm |
| M24 |
24 MCP |
36.0mm |
29.0mm |
19.0mm |
| M27 |
27 MCP |
41.0mm |
33.0mm |
22.0mm |
| M30 |
30 MCP |
46.0mm |
39.0mm |
26.0mm |
| M33 |
33 MCP |
50.0mm |
43.0mm |
30.0mm |
| M36 |
36 MCP |
55.0mm |
47.0mm |
32.5mm |
| M39 |
39 MCP |
60.0mm |
50.0mm |
35.0mm |
| M42 |
42 MCP |
65.0mm |
54.0mm |
37.5mm |
| M45 |
45 MCP |
70.0mm |
58.0mm |
41.0mm |
| M48 |
48 MCI |
75.0mm |
62.0mm |
42.5mm |
| M52 |
52 MCP |
80.0mm |
67.0mm |
46.5mm |
