The Heavy Duty Anchor is a high performance anchor with a three part expansion sleeve allowing for smaller spacings and edge distances.
The plastic compression ring ensures the clamping of the mounted piece to the work surface.
Product Information
A zinc plated, torqued controlled through fixing suitable for use in cracked and non cracked concrete range between C20/25 & C50/60.
Features
Through Fixing
Heavy Duty Loads
Torque controlled expansion
Option 1 European technical approval

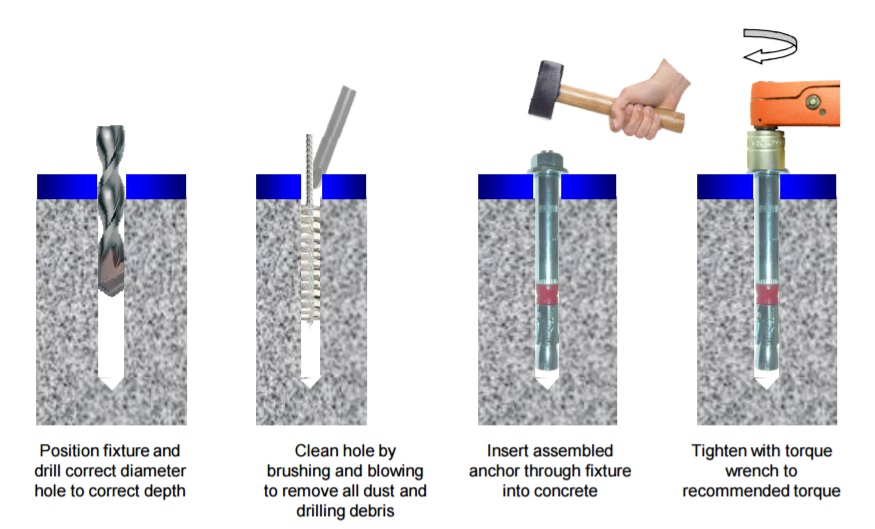

Supplied pre assembled for rapid installation
| Part Number | Thread Dia. | Anchor Length | Drill Hole Dia. | Max Fixture Thickness | Fixture Clearance Hole | Embedment Depth | Minimum Hole Depth | Structure Thickness | Bolt across flats | Installation Torque |
| NHD0810 | 8mm | 87mm | 12mm | 10mm | 14mm | 70mm | 80mm | 125mm | 13mm | 30Nm |
| NHD0830 | 8mm | 107mm | 12mm | 30mm | 14mm | 70mm | 80mm | 125mm | 13mm | 30Nm |
| NHD0850 | 8mm | 127mm | 12mm | 50mm | 14mm | 70mm | 80mm | 125mm | 13mm | 30Nm |
| NHD1015 | 10mm | 108mm | 15mm | 15mm | 17mm | 85mm | 95mm | 145mm | 17mm | 50Nm |
| NHD1025 | 10mm | 118mm | 15mm | 25mm | 17mm | 85mm | 95mm | 145mm | 17mm | 50Nm |
| NHD1045 | 10mm | 138mm | 15mm | 45mm | 17mm | 85mm | 95mm | 145mm | 17mm | 50Nm |
| NHD1210 | 12mm | 117mm | 18mm | 10mm | 20mm | 95mm | 105mm | 165mm | 19mm | 80Nm |
| NHD1220 | 12mm | 127mm | 18mm | 20mm | 20mm | 95mm | 105mm | 165mm | 19mm | 80Nm |
| NHD1240 | 12mm | 147mm | 18mm | 40mm | 20mm | 95mm | 105mm | 165mm | 19mm | 80Nm |
| NHD1270 | 12mm | 177mm | 18mm | 70mm | 20mm | 95mm | 105mm | 165mm | 19mm | 80Nm |
| NHD1620 | 16mm | 152mm | 24mm | 20mm | 26mm | 120mm | 130mm | 205mm | 24mm | 160Nm |
| NHD1650 | 16mm | 182mm | 24mm | 50mm | 26mm | 120mm | 130mm | 205mm | 24mm | 160Nm |
