The countersunk Heavy Duty Anchor is a high performance anchor with a three part expansion sleeve allowing for smaller spacings and edge distances.
The plastic compression ring ensures the clamping of the mounted piece to the work surface.
Product Information
A zinc plated, torqued controlled through fixing suitable for use in cracked and non cracked concrete range between C20/25 & C50/60.
Features
Through Fixing
Heavy Duty Loads
Torque controlled expansion
Option 1 European technical approval

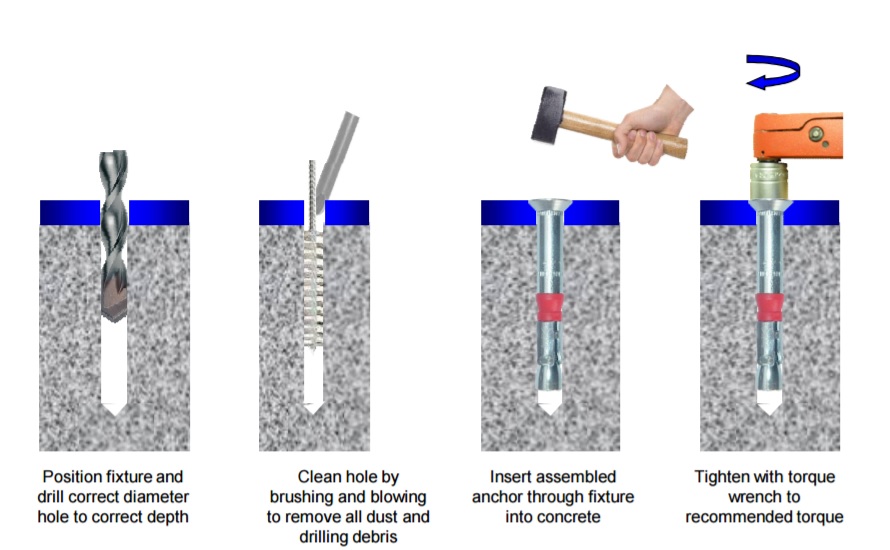

Supplied pre assembled for rapid installation
| Part Number | Thread Dia. | Anchor Length | Drill Hole Dia. | Max Fixture Thickness | Fixture Clearance Hole | Head Dia. | Embedment Depth | Minimum Hole Depth | Structure Thickness | CSK Bolt Hex Drive | Installation Torque |
| SLSK10/10 | 6mm | 70mm | 10mm | 10mm | 12mm | 16.5mm | 60mm | 65mm | 105mm | 4mm | 15Nm |
| SLSK10/25 | 6mm | 85mm | 10mm | 25mm | 12mm | 16.5mm | 60mm | 65mm | 105mm | 4mm | 15Nm |
| SLSK10/45 | 6mm | 100mm | 10mm | 40mm | 12mm | 16.5mm | 60mm | 65mm | 105mm | 4mm | 15Nm |
| SLSK12/10 | 8mm | 80mm | 12mm | 10mm | 14mm | 20.5mm | 70mm | 80mm | 125mm | 5mm | 30Nm |
| SLSK12/25 | 8mm | 95mm | 12mm | 25mm | 14mm | 20.5mm | 70mm | 80mm | 125mm | 5mm | 30Nm |
| SLSK12/50 | 8mm | 120mm | 12mm | 50mm | 14mm | 20.5mm | 70mm | 80mm | 125mm | 5mm | 30Nm |
| SLSK15/10 | 10mm | 100mm | 15mm | 10mm | 17mm | 24.5mm | 85mm | 95mm | 145mm | 6mm | 50Nm |
| SLSK15/25 | 10mm | 110mm | 15mm | 25mm | 17mm | 24.5mm | 85mm | 95mm | 145mm | 6mm | 50Nm |
| SLSK15/50 | 10mm | 135mm | 15mm | 50mm | 17mm | 24.5mm | 85mm | 95mm | 145mm | 6mm | 50Nm |
| SLSK18/20 | 12mm | 115mm | 18mm | 20mm | 20mm | 29.5mm | 95mm | 105mm | 165mm | 8mm | 80Nm |
| SLSK18/40 | 12mm | 135mm | 18mm | 40mm | 20mm | 29.5mm | 95mm | 105mm | 165mm | 8mm | 80Nm |
