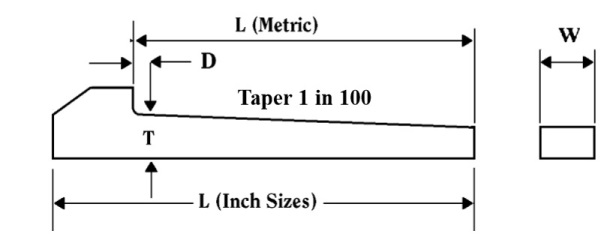

We supply metric gib head keys to DIN 6887 and imperial woodruff keys to BS46 PT1
| Metric |
| W X T X L |
| 8X7X32 |
8X7X40 |
8X7X50 |
8X7X70 |
8X7X80 |
8X7X90 |
| 10X8X32 |
10X8X40 |
10X8X50 |
10X8X70 |
10X8X80 |
10X8X90 |
10X8X100 |
| 12X8X32 |
12X8X40 |
12X8X50 |
12X8X70 |
12X8X80 |
12X8X90 |
12X8X100 |
12X8X120 |
12X8X140 |
| |
14X9X40 |
14X9X50 |
14X9X70 |
14X9X80 |
14X9X90 |
14X9X100 |
14X9X120 |
14X9X140 |
14X9X160 |
| |
|
16X10X50 |
16X10X70 |
16X10X80 |
16X10X90 |
16X10X100 |
16X10X120 |
16X10X140 |
16X10X160 |
| |
|
18X11X50 |
18X11X70 |
18X11X80 |
18X11X90 |
18X11X100 |
18X11X120 |
18X11X140 |
18X11X160 |
18X11X200 |
| |
|
|
20X12X70 |
20X12X80 |
20X12X90 |
20X12X100 |
20X12X120 |
20X12X140 |
20X12X160 |
20X12X200 |
| |
|
|
22X14X70 |
22X14X80 |
22X14X90 |
22X14X100 |
22X14X120 |
22X14X140 |
22X14X160 |
22X14X200 |
| |
|
|
25X14X70 |
25X14X80 |
25X14X90 |
25X14X100 |
25X14X120 |
25X14X140 |
25X14X160 |
25X14X200 |
| |
|
|
28X16X70 |
28X16X80 |
28X16X90 |
28X16X100 |
28X16X120 |
28X16X140 |
28X16X160 |
28X16X200 |
| |
|
|
|
|
32X18X90 |
32X18X100 |
32X18X120 |
32X18X140 |
32X18X160 |
32X18X200 |
| |
|
|
|
|
|
36X20X100 |
36X20X120 |
36X20X140 |
36X20X160 |
36X20X200 |
| |
|
|
|
|
|
|
40X22X120 |
40X22X140 |
40X22X160 |
40X22X200 |
| |
|
|
|
|
|
|
45X25X120 |
45X25X140 |
45X25X160 |
45X25X200 |
| |
|
|
|
|
|
|
|
50X28X140 |
50X28X160 |
50X28X200 |
| Imperial |
TXD XL |
| 3/16X3/16 X2.1/2 |
3/16X3/16 X3 |
3/16X3/16 X3.1/2 |
3/16X3/16 X4 |
3/16X3/16 X4.1/2 |
3/16X3/16 X5 |
| 1/4X1/4 X2.1/2 |
1/4X1/4 X3 |
1/4X1/4 X3.1/2 |
1/4X1/4 X4 |
1/4X1/4 X4.1/2 |
1/4X1/4 X5 |
1/4X1/4 X5.1/2 |
| 5/16X5/16 X2.1/2 |
5/16X5/16 X3 |
5/16X5/16 X3.1/2 |
5/16X5/16 X4 |
5/16X5/16 X4.1/2 |
5/16X5/16 X5 |
5/16X5/16 X5.1/2 |
5/16X5/16 X6 |
| 3/8X3/8 X2.1/2 |
3/8X3/8 X3 |
3/8X3/8 X3.1/2 |
3/8X3/8 X4 |
3/8X3/8 X4.1/2 |
3/8X3/8 X5 |
3/8X3/8 X5.1/2 |
3/8X3/8 X6 |
3/8X3/8 X6.1/2 |
| 7/16X7/16 X2.1/2 |
7/16X7/16 X3 |
7/16X7/16 X3.1/2 |
7/16X7/16 X4 |
7/16X7/16 X4.1/2 |
7/16X7/16 X5 |
7/16X7/16 X5.1/2 |
7/16X7/16 X6 |
7/16X7/16 X6.1/2 |
7/16X7/16 X7 |
| |
1/2X1/2 X3 |
1/2X1/2 X3.1/2 |
1/2X1/2 X4 |
1/2X1/2 X4.1/2 |
1/2X1/2 X5 |
1/2X1/2 X5.1/2 |
1/2X1/2 X6 |
1/2X1/2 X6.1/2 |
1/2X1/2 X7 |
1/2X1/2 X8 |
| |
|
5/8X5/8 X3.1/2 |
5/8X5/8 X4 |
5/8X5/8 X4.1/2 |
5/8X5/8 X5 |
5/8X5/8 X5.1/2 |
5/8X5/8 X6 |
5/8X5/8 X6.1/2 |
5/8X5/8 X7 |
5/8X5/8 X8 |
| |
|
|
3/4X3/4 X4 |
3/4X3/4 X4.1/2 |
3/4X3/4 X5 |
3/4X3/4 X5.1/2 |
3/4X3/4 X6 |
3/4X3/4 X6.1/2 |
3/4X3/4 X7 |
3/4X3/4 X8 |
| |
|
|
|
7/8X7/8 X4.1/2 |
7/8X7/8 X5 |
7/8X7/8 X5.1/2 |
7/8X7/8 X6 |
7/8X7/8 X6.1/2 |
7/8X7/8 X7 |
7/8X7/8 X8 |
| |
|
|
|
|
1X1 X5 |
1X1 X5.1/2 |
1X1 X6 |
1X1 X6.1/2 |
1X1 X7 |
1X1 X8 |
