We supply DIN580 Eyebolts in the following materials,
| Steel |
4.6 |
| Stainless Steel |
A2 (304) |
A4 (316) |

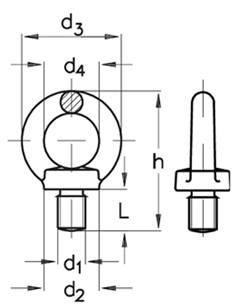

Dimensions for DIN580 Eyebolts
If lifting eye bolts form part of lifting equipment
CE marking is necessary.
Lifting eye bolts
do not require CE marking if not used for lifting (as towing eyes for example)
or is only used once for lifting (such as for moving machines).
| Diameter |
Pitch |
d2 |
d3 |
d4 |
h |
L |
| M8 |
1.25mm |
20.0mm |
36.0mm |
20.0mm |
49.0mm |
13.0mm |
| M10 |
1.5mm |
25.0mm |
45.0mm |
25.0mm |
62.0mm |
17.0mm |
| M12 |
1.75mm |
30.0mm |
54.0mm |
30.0mm |
73.5mm |
20.5mm |
| M14 ≠ |
2.0mm |
30.0mm |
54.0mm |
30.0mm |
73.5mm |
20.5mm |
| M16 |
2.0mm |
35.0mm |
63.0mm |
35.0mm |
89.0mm |
27.0mm |
| M18 ≠ |
2.5mm |
35.0mm |
63.0mm |
35.0mm |
89.0mm |
27.0mm |
| M20 |
2.5mm |
40.0mm |
72.0mm |
40.0mm |
101.0mm |
30.0mm |
| M22 ≠ |
2.5mm |
40.0mm |
72.0mm |
40.0mm |
101.0mm |
30.0mm |
| M24 |
3.0mm |
50.0mm |
90.0mm |
50.0mm |
126.0mm |
36.0mm |
| M27 ≠ |
3.0mm |
50.0mm |
90.0mm |
50.0mm |
126.0mm |
36.0mm |
| M30 |
3.5mm |
65.0mm |
108.0mm |
60.0mm |
154.0mm |
45.0mm |
| M33 ≠ |
3.5mm |
65.0mm |
108.0mm |
60.0mm |
154.0mm |
45.0mm |
| M36 |
4.0mm |
75.0mm |
126.0mm |
70.0mm |
182.0mm |
54.0mm |
| M39 ≠ |
4.0mm |
75.0mm |
126.0mm |
70.0mm |
182.0mm |
54.0mm |
| M42 |
4.5mm |
85.0mm |
144.0mm |
80.0mm |
210.0mm |
63.0mm |
| M45 ≠ |
4.5.0mm |
85.0mm |
144.0mm |
80.0mm |
210.0mm |
63.0mm |
| M48 |
5.0mm |
100.0mm |
166.0mm |
90.0mm |
236.0mm |
68.0mm |
| M52 ≠ |
5.0mm |
110.0mm |
184.0mm |
100.0mm |
265.0mm |
78.0mm |
| M56 |
5.5mm |
110.0mm |
184.0mm |
100.0mm |
265.0mm |
78.0mm |
| M64 |
6.0mm |
120.0mm |
206.0mm |
110.0mm |
298.0mm |
90.0mm |
| M72X6 |
6.0mm |
150.0mm |
260.0mm |
140.0mm |
360.0mm |
100.0mm |
