We supply metric woodruff keys to DIN 6888 and imperial woodruff keys to BS46 PT1 Table 5
| Metric |

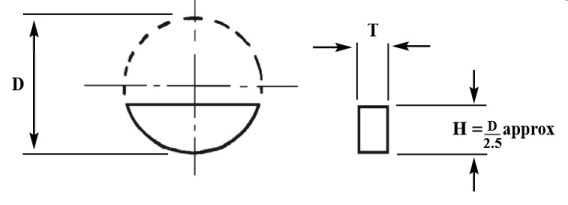

T X D |
| 2 X 10 |
2 X 13 |
| 2.5 X 10 |
| 3 X 10 |
3 X 13 |
3 X 16 |
| |
4 X 13 |
4 X 16 |
4 X 19 |
| |
|
5 X 16 |
5 X 19 |
5 X 22 |
5 X 25 |
| |
|
|
6 X 19 |
6 X 22 |
6 X 25 |
6 X 28 |
| |
|
|
|
|
7 X 25 |
|
| |
|
|
|
8 X 22 |
|
8 X 28 |
8 X 32 |
| |
|
|
|
|
|
10 X 28 |
10 X 32 |
10 X 45 |
| Imperial |
T X D |
| 1/16 X 3/8 |
1/16 X 1/2 |
| 3/32 X 3/8 |
3/32 X 1/2 |
3/32 X 5/8 |
| 1/8 X 3/8 |
1/8 X 1/2 |
1/8 X 5/8 |
1/8 X 3/4 |
| |
|
5/32 X 5/8 |
5/32 X 3/4 |
5/32 X 7/8 |
| |
|
3/16 X 5/8 |
3/16 X 3/4 |
3/16 X 7/8 |
3/16 X 1 |
3/16 X 1.1/8 |
3/16 X 1.1/4 |
| |
|
|
|
7/32 X 7/8 |
7/32 X 1 |
7/32 X 1.1/8 |
| |
|
|
1/4 X 3/4 |
1/4 X 7/8 |
1/4 X 1 |
1/4 X 1.1/8 |
1/4 X 1.1/4 |
| |
|
|
|
|
5/16 X 1 |
5/16 X 1.1/8 |
5/16 X 1.1/4 |
| |
|
|
|
|
3/8 X 1 |
|
3/8 X 1.1/4 |
3/8 X 1.1/2 |
