Lipped Drop In Anchor

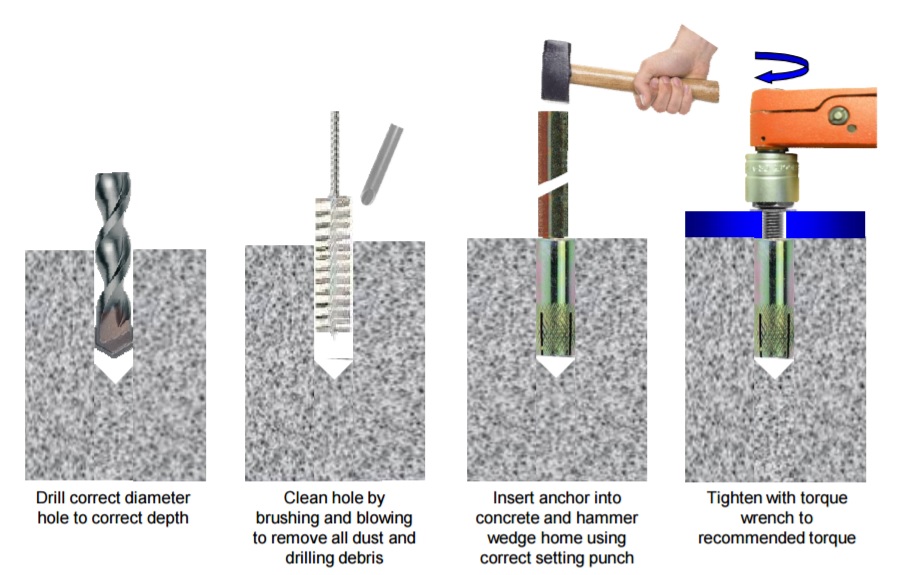

An internally threaded socket anchor for use with bolts or threaded rod of any length. May be set flush or at a depth. Full expansion can be guaranteed by using the correct shouldered setting punch. Suitable for use in concrete.

Product Information
Deformation controlled anchor available in zinc plated and yellow passivated finish. Suitable for use in non-cracked concrete between C20/25 & C50/60

Features
Internal thread suitable for bolts or threaded studs.
Permanent socket to allow removal and replacement of fixture.

Part Number Thread Dia. Anchor Length Hole Dia. Setting Punch Fixture Clearance Hole Internal Thread Length Embedment Depth Minimum Hole Depth Minimum Structure Thickness Maximum Installation Torque
DM06SH 6mm 25mm 8mm DZSP06 7mm 10mm 25mm 25mm 100mm 4Nm
DM08SH 8mm 30mm 10mm DZSP08 9mm 14mm 30mm 30mm 100mm 9Nm
DM10SH 10mm 30mm 12mm DZSP10 12mm 15mm 30mm 30mm 100mm 17Nm
DM10SHL 10mm 40mm 12mm DZSP10 12mm 15mm 40mm 40mm 130mm 17Nm
DM12SH 12mm 50mm 15mm DZSP12 14mm 20mm 50mm 50mm 140mm 30Nm
DM16SH 16mm 65mm 20mm DZSP16 18mm 22mm 65mm 65mm 160mm 75Nm
