JCP Hook and Eye Bolts are forged hooks and eyes with a metric thread and are zinc plated and clear passivated to a min of 5┬Ám.

JCP Hook Bolts and Eye Bolts are only to be used for static loads. As they can be used with a large variety of anchors and channel systems care must be taken to ensure all other components can support the required load.
They are not to be used for safety harness anchorage points or as lifting eyes.

Hook Bolts
Part Number Thread Dia. Hook Dia. Overall Length Thread Length Max Load Kg
FHM06 6mm 8mm 77mm 50mm 77kg
FHM08 8mm 10mm 98mm 60mm 160kg
FHM10 10mm 12mm 116mm 73mm 250kg
FHM12 12mm 16mm 146mm 90mm 386kg

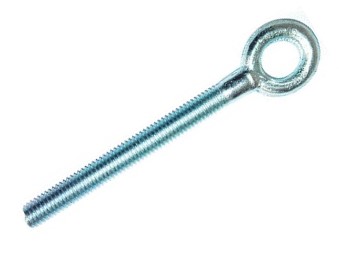

Eye Bolts
Part Number Thread Dia. Hook Dia. Overall Length Thread Length Max Load Kg
FEM06 6mm 8mm 75mm 50mm 140kg
FHM08 8mm 11mm 67mm 60mm 260kg
FHM10 10mm 14mm 108mm 73mm 420kg
FHM12 12mm 16mm 132mm 90mm 610kg
